sub jaw fixed chuck

Product Detail

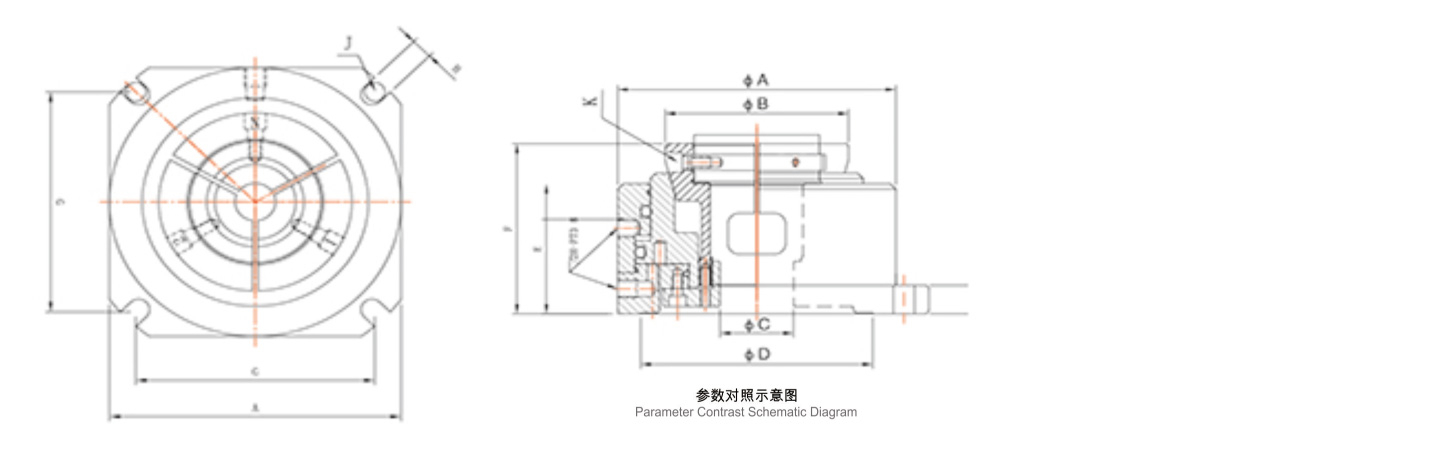

型号 Model	活塞面积cm² Piston area		工作压力MPa Working pressure Mpa	极限握径台阶孔/通孔mm Ultimate grip Step hole/through hole	最大夹持力 Maximum clamping force	连接螺栓(J) Connecting bolt (J)	适配副爪 Adapter claw	副爪固定螺丝(K) Sub-jaw fixing screw (K)	净重kg Net weight
型号 Model	押侧 Push side	拉侧 Pull side	工作压力MPa Working pressure Mpa	极限握径台阶孔/通孔mm Ultimate grip Step hole/through hole	最大夹持力 Maximum clamping force	连接螺栓(J) Connecting bolt (J)	适配副爪 Adapter claw	副爪固定螺丝(K) Sub-jaw fixing screw (K)	净重kg Net weight

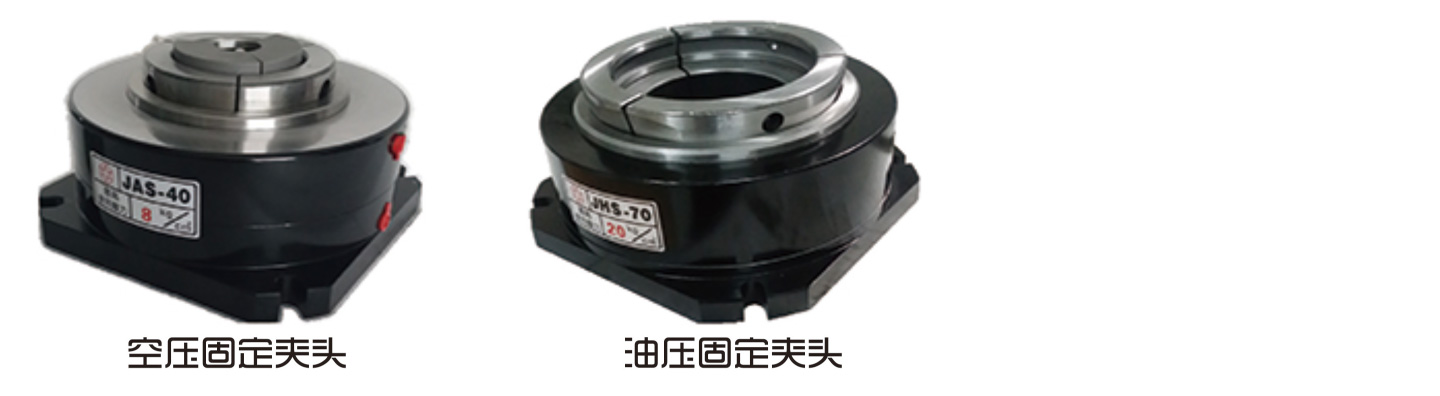

JHS-40	85.4	29.2	2.0/0.8	55/38	12.8/5.2	4-M10	C-40	3-M6	6.3
JAS-40	137.2	80.7	1.0/0.8	55/38	10.4/8	4-M10	C-40	3-M6	8.6

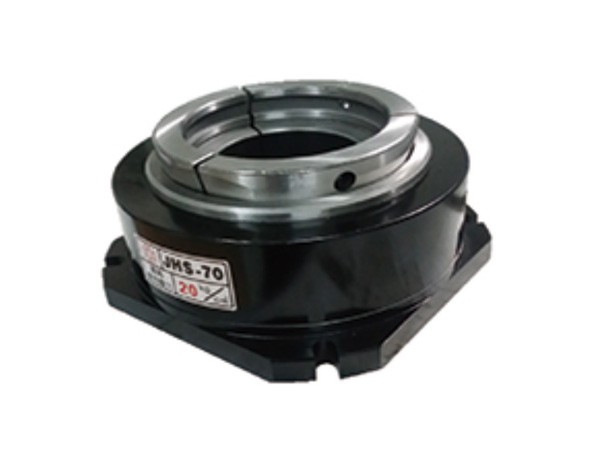

JHS-70	132.1	37.2	2.0/0.8	95/68	11.7/8	4-M10	C-70	3-M6	10.5
