This chuck can be used for internal expansion or external clamping. One-piece structure. The bearing has no load, high speed, long life and low temperature. Two-way power, forcibly open the cylinder When the pressure is interrupted, the chuck self-locks and assumes a clamping state. It can be locked by the front and installed by the front lock, waterproof and dustproof. The collet does not retract and can be controlled normally. The length of the body accuracy is within 0.01mm.
型号 | 活塞面积cm2 | 使用压力 | 极限转速 | 极限握径 | 最大夹持力 | 连接螺栓(J) | 适配筒夹 | 筒夹固趙丝(K) | |
押侧 | 拉侧 | ||||||||
JAB-15 | 39.5 | 37 | 0.3-0.8 | 4000 | 20/15 | 2.3/2.2 | 4-M6 | YB-15 | 1-M4 |
JAB-25 | 128.4 | 119.7 | 0.3-0.8 | 4000 | 30/25 | 7.8/72 | 4-M8 | YB-25 | 2-M5 |
JAB-40 | 161.6 | 145.5 | 0.3-0.8 | 3500 | 50/40 | 9.7/8.8 | 4-M8 | 16C | 2-M5 |
JAB-60 | 235.6 | 208.1 | 0.3-0.8 | 3000 | 70/60 | 14.2/12.6 | 4-M10 | 20C | 2-M5 |

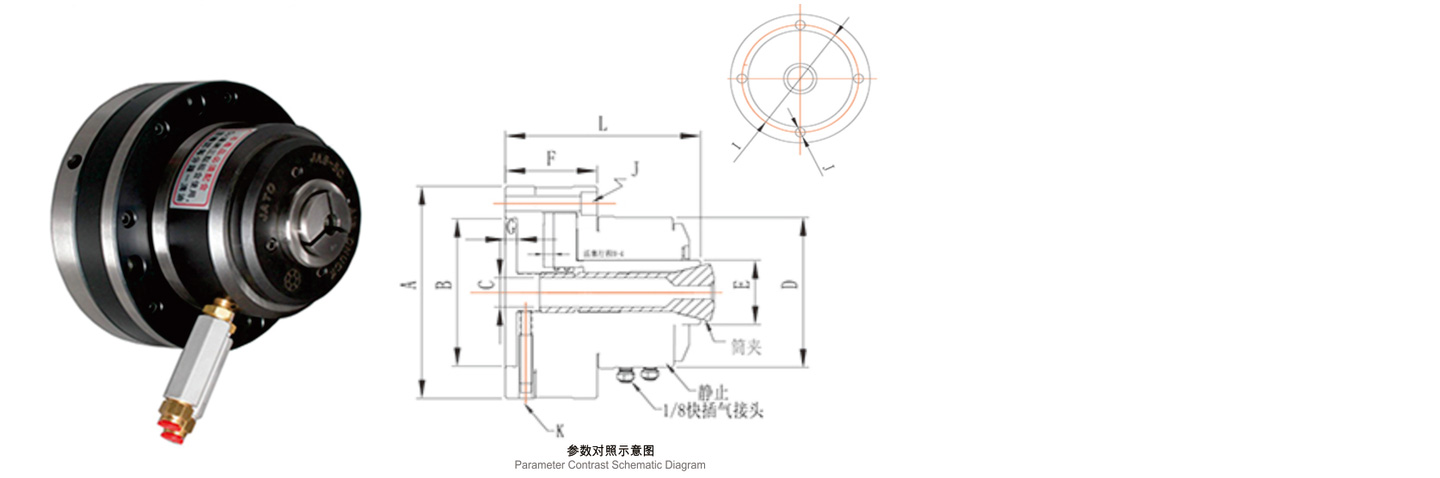

型号 | A | B | C | D | E | F | G | H | I | L | 夹持扭力
kgt-cm2 | 适配筒夹 | 重量kg |
JAB-15 | 100 | 70 | 15 | 71 | 30 | 40 | 5 | 6.5 | 84 | 85 | 2.1 | YB-15 | 3.2kg |
JAB-25 | 167 | 130 | 25 | 104 | 52 | 48 | 5 | 8.5 | 147 | 108 | 3 | YB-25 | 9.5kg |
JAB-40 | 187 | 150 | 40 | 133 | 72 | 50 | 5 | 8.5 | 168 | 122 | 4.5 | 16C | 13.5kg |
JAB-60 | 222 | 170 | 60 | 168 | 100 | 55 | 5 | 11 | 203 | 130 | 7.8 | 20C | 20.3kg |
