The hydraulic and pneumatic built-in mechanism eliminates the need to install the rear rotary cylinder. The clamping accuracy is 0.05-0.08mm (measured 10mm from the end surface). Strict dust-proof design to ensure bearing life. The light alloy cylinder block dissipates heat, effectively reducing the temperature. The air pressure is soft and the workpiece is not deformed. Strong hydraulic grip, competent for heavy cutting.
型号 | 活塞面积cm2 | 使用压力MPa | 极限转速 | 极限握径 | 最大夹持力 | 连接螺栓(J) | 适配副爪 | 副爪固螺丝(K) | 净重kg | |
押侧 | 拉侧 | |||||||||
JH5-25 | 56 | 16.5 | 2.0/0.8 | 1800 | 45/26 | 8.5/3.3 | 3-M8 | C-25 | 3-M5 | 6.3 |
JH7-40 | 87.7 | 31.1 | 2.0/0.8 | 1600 | 55/45 | 13.1/5.2 | 3-M10 | C-40 | 3-M6 | 12.9 |
JH7-70 | 117.8 | 26.7 | 2.0/0.8 | 1400 | 95/68 | 17.8/7.1 | 3-M10 | 0-70 | 3-M6 | 20.5 |
JH9-90 | 161.6 | 49.2 | 2.0/0 | 1100 | 95/89 | 24.5/0 | 4-M10 | C-70 | 3-M6 | 23 |
JH9-120 | 198.7 | 33.8 | 2.0/0 | 900 | 130/120 | 30.1/0 | 4-M10 | C-120 | 3-M6 | 30 |
JA5-25 | 115 | 75 | 1.0/0.8 | 2000 | 35/25 | 13.1/6.9 | 4-M10 | C-25 | 3-M5 | 7.6 |
JA7-40 | 179.2 | 122.7 | 1.0/0.8 | 1800 | 55/45 | 20.3/10.9 | 4-M10 | C-40 | 3-M6 | 15.3 |
JA7-70 | 292 | 210.3 | 0/0.8 | 1600 | 95/68 | 0/44.2 | 4-M10 | C-70 | 3-M6 | 25 |

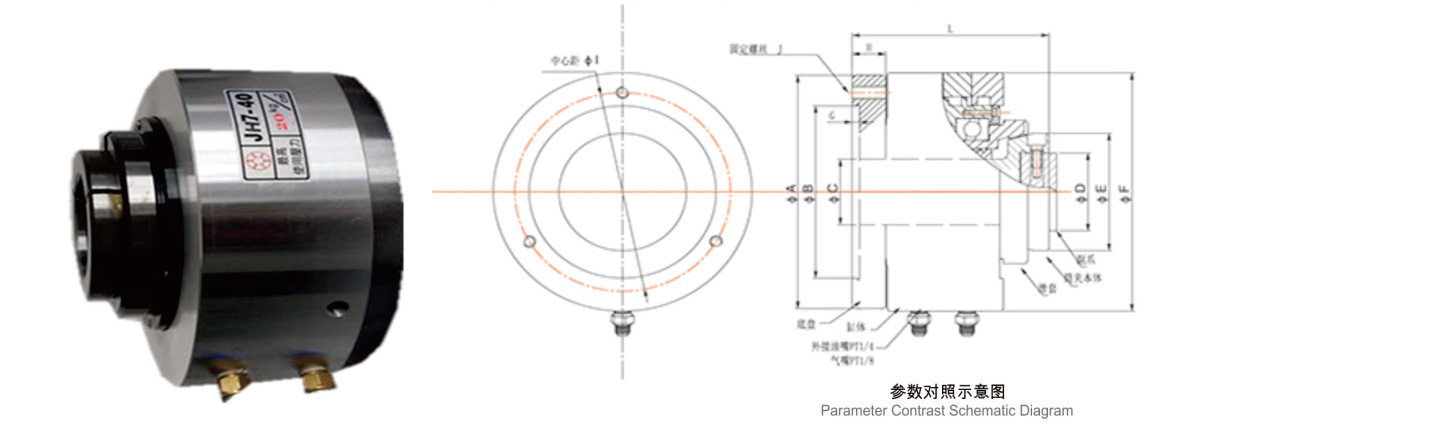

型号 | A | B H6 | C | D | E | F | G | L | I | H |
JH5-25 | 135 | 100 | 26 | 45 | 68 | 138 | 4 | 105 | 115 | 18 |
JH7-40 | 192 | 155 | 46 | 65 | 94 | 192 | 5 | 128 | 172 | 22 |
JH7-70 | 192 | 155 | 69 | 105 | 136 | 212 | 5 | 142 | 172 | 19 |
JH9-90 | 230 | 190 | 89 | 105 | 136 | 232 | 6 | 150 | 210 | 23 |
JH9-120 | 230 | 190 | 120 | 140 | 168 | 275 | 6 | 160 | 210 | 23 |
JA5-25 | 170 | 100 | 26 | 45 | 68 | 170 | 4 | 105 | 115 | 18 |
JA7-40 | 192 | 155 | 46 | 65 | 94 | 212 | 5 | 128 | 172 | 22 |
JA7-70 | 192 | 155 | 69 | 105 | 136 | 266 | 5 | 142 | 172 | 19 |
