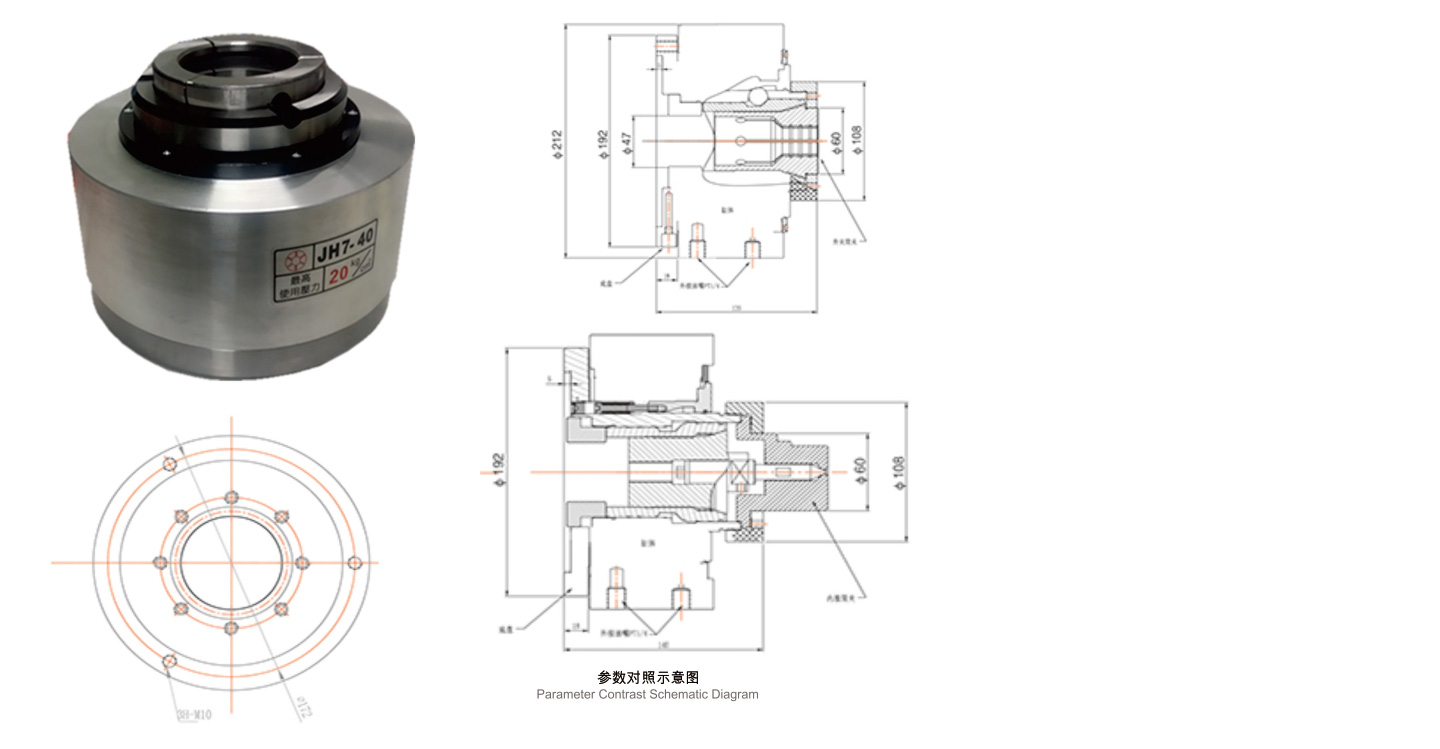

There is a mechanism in the cylinder, which eliminates the need to install a rotary cylinder. The body accuracy is within 0.01mm, and the clamping accuracy is 0.03mm (measured on the end face 20mm). The chuck body is integrally formed with good rigidity and high precision. Strict dust-proof design to ensure the service life of the bearing. Strong grip, competent for heavy cutting. Light alloy cylinder body, light weight, good heat dissipation, effectively reduce temperature. The power source can be air or oil pressure. The chuck can be expanded internally or clamped externally.
型号 | 活塞面积cm2 | 使用压力MPa | 极限转速 | 有效握径 | 最大夹持力 | 连接螺栓(J) | 适配筒夹 | 净重kg | |
押侧 | 拉侧 | ||||||||
JH(A)7-44 外夹 | 117.8 | 26.7 | 2.0/0.8 | 1600 | 50/44 | 18.5/7.3 | 3-M10 | C-44 | 16 |
JH(A)7-44 内涨 | 117.8 | 26.7 | 2.0/0.8 | 1600 | 20-60 | 14.6/5.8 | 3-M10 | N-44 | 17.3 |
